Mercedes-Benz E-Class W212 (2009–2016) Rear Wiper Arm

Mercedes-Benz E-Class W212 (2009–2016) Rear Wiper Arm

CodeBW1244B
ColorBlack
MOQ100
Consult immediately
DetailReview(0)

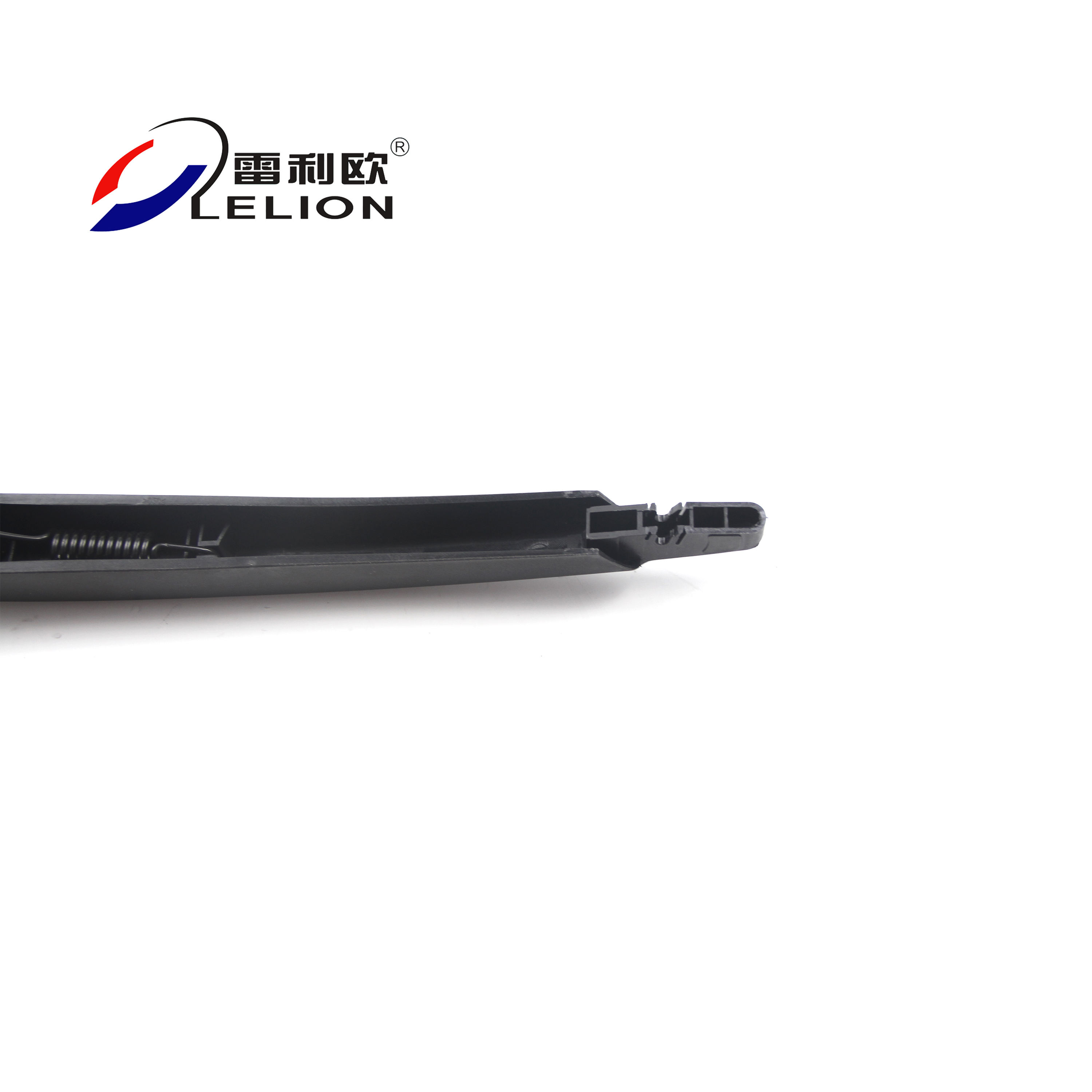

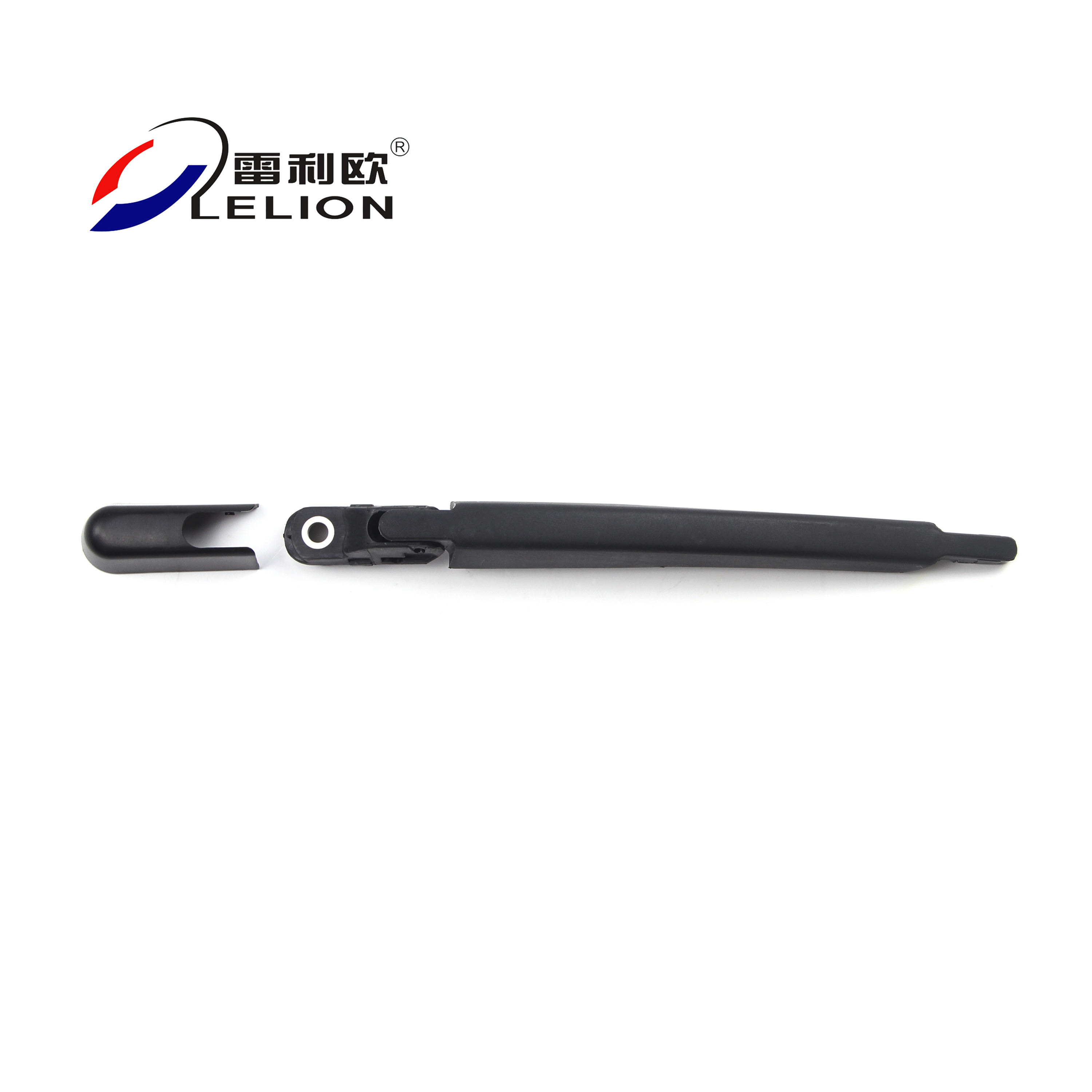

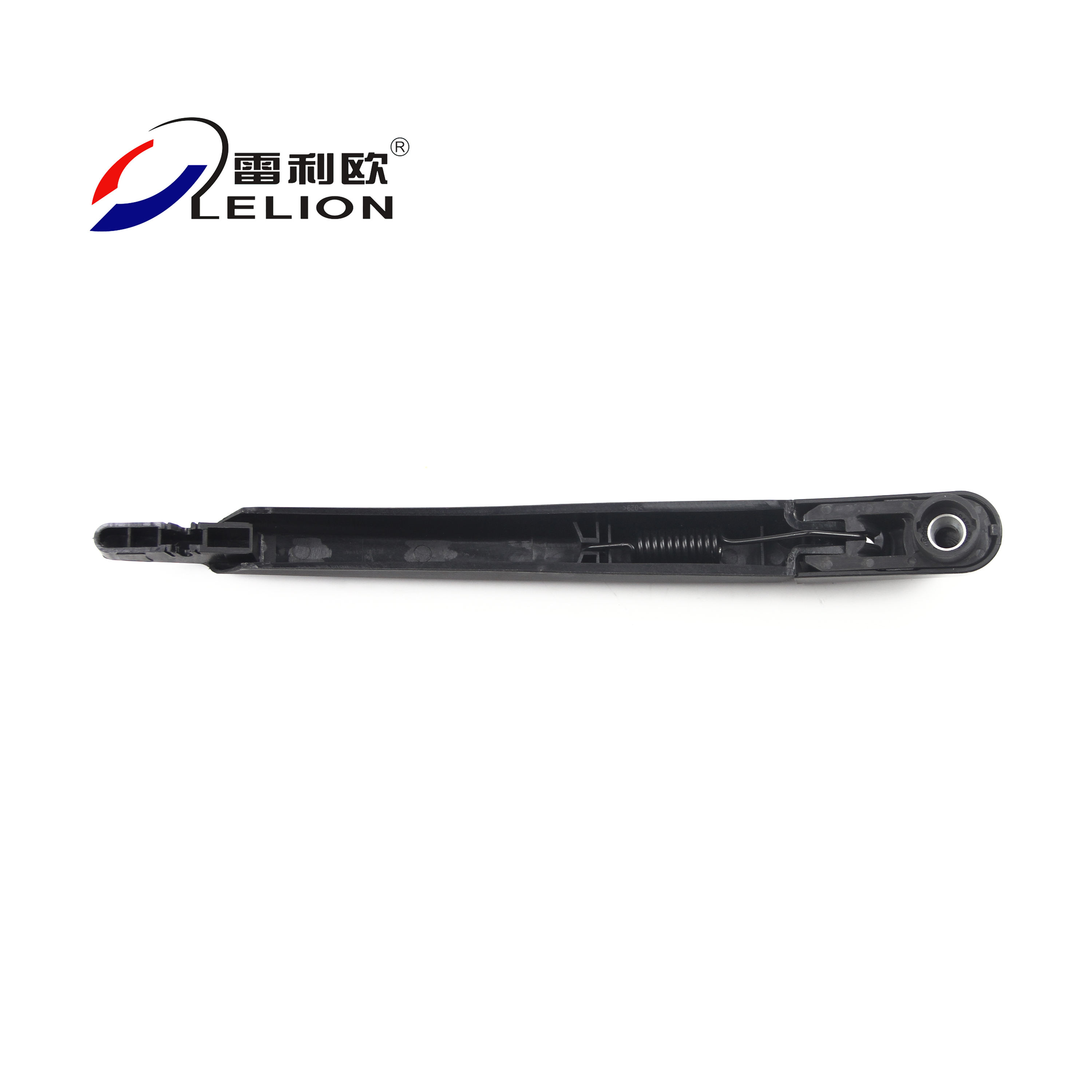

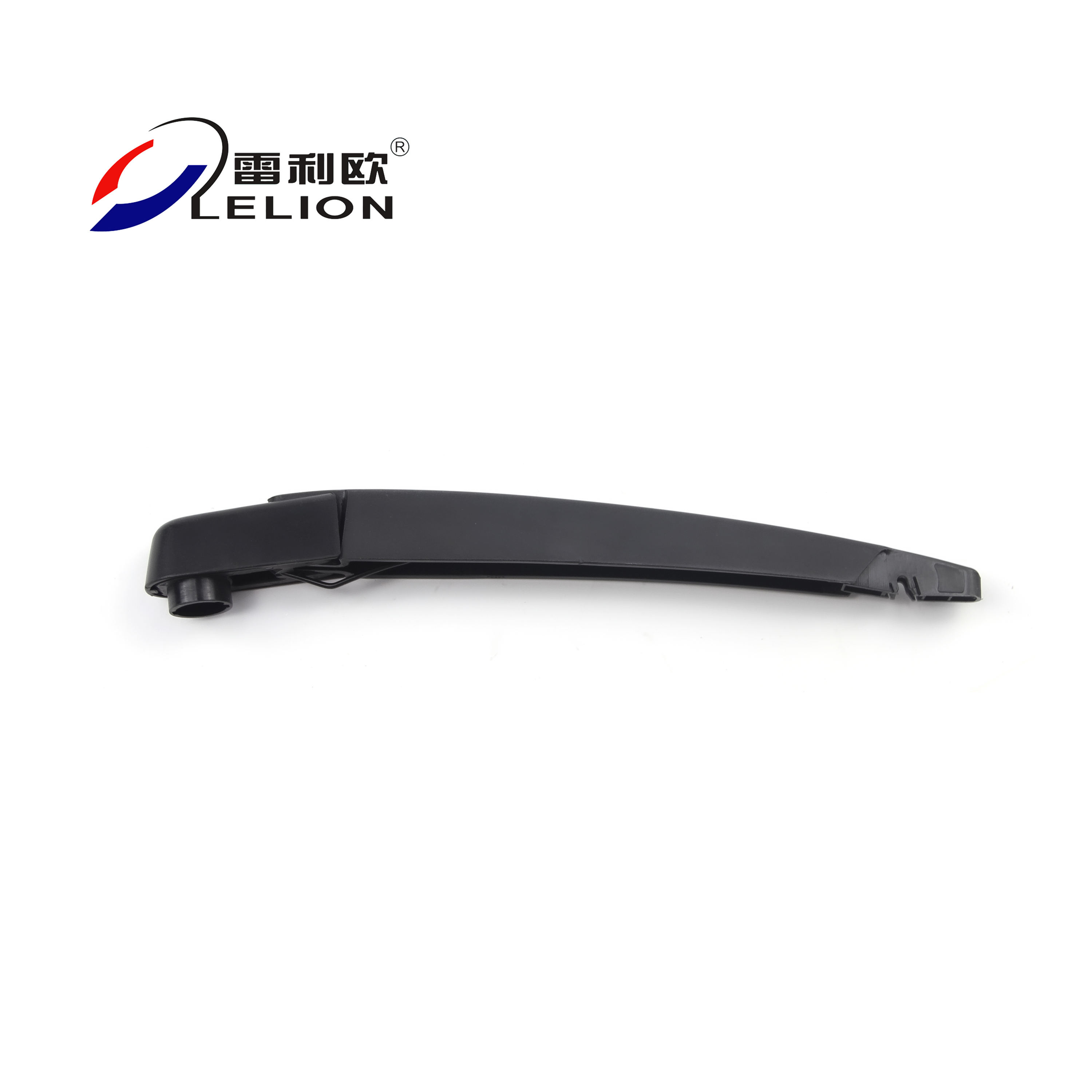

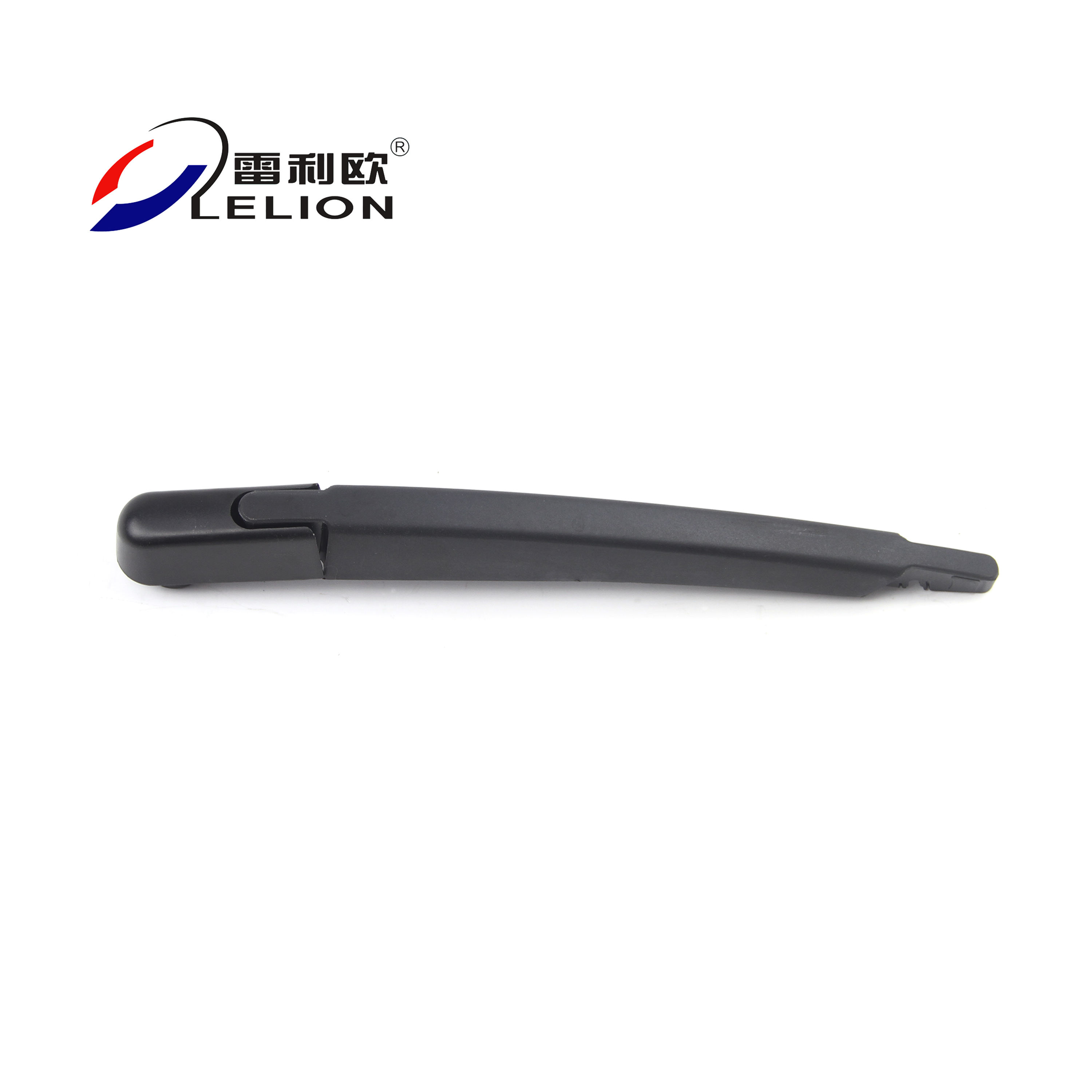

Mercedes-Benz E-Class W212 (2009–2016) Rear Wiper Arm (Replacement)

Rear Wiper Arm | Direct-Fit | Durable | OEM Spline

Aftermarket rear windshield wiper arm replacement for Mercedes-Benz E-Class W212 / S212 Estate (2009–2016, with rear wiper). Replaces an aged, spring-fatigued, corroded or mis‑parked original arm to restore even pressure and proper sweep path for the blade. This listing includes the rear wiper arm only (blade NOT included); use with a compatible rear blade purchased separately.

Installation Video: W212 Rear Wiper Arm Install (YouTube)

  • Platform: W212 / S212 (Estate / Wagon, with rear wiper)
  • Years: 2009–2016
  • Verification: Confirm vehicle is equipped with a rear wiper assembly and match the arm base spline / stud shape.
  • More Sizes: Wiper Size Lookup Center
  • Precisely matched spline; true direct-fit replacement
  • Stable spring pressure keeps blade seated (blade sold separately)
  • UV & weather resistant engineering plastic arm body
  • Smooth pivot reduces sweep chatter
  • 3–5 minute typical install
  • Helps reduce rear glass rain, snow and film residue (depends on blade condition)
  • Component: 1 × Rear wiper arm (blade not included)
  • Interface / Spline: OEM spec match for W212 / S212 rear wiper motor output shaft
  • Materials: Engineering plastic arm body / metal spring / internal alloy pivot
  • Color: Black (matte)
  • Function: Provides pressure and sweep support for the rear wiper blade
  • Compatible Blade: Use a rear blade matching original length and connector (purchased separately)
  • Tolerance: Arm dimensions & park angle within manufacturing allowable range
  1. Switch off ignition and ensure the wiper is in its parked position.
  2. Lift old arm slightly; remove nut or fastener beneath any cap.
  3. Pull old arm straight off along the shaft axis—avoid harsh lateral twisting.
  4. Clean the output shaft spline (lightly brush if corroded).
  5. Align new arm at original angle, press onto spline and tighten nut.
  6. If also replacing blade: attach compatible rear blade to arm tip now.
  7. Spray washer and test (with blade installed) to confirm sweep path & park angle.
  • Periodically check spring tension; low pressure causes localized skipping.
  • Clear grit around the pivot to prevent stiffness or uneven sweep.
  • Avoid forcibly bending the arm body or twisting the spline seat.
  • In freezing conditions, de-ice before lifting the arm to prevent spring fatigue or breakage.
  • If sweep becomes irregular, first rule out blade rubber wear, then inspect arm pivot and spring.
Is the blade included?
No. This is the rear wiper arm only. Blade must be purchased separately.
Why replace only the arm?
Spring fatigue, deformation or pivot wear can cause uneven blade pressure and streaking even with a new blade.
Can I keep using the old blade?
Temporarily yes, but for best visibility replace an aged blade at the same time.
Any special tools needed?
Usually just the correct size socket / wrench.
Are streaks caused by the arm?
Most streaks come from worn rubber; only pressure loss or uneven sweep links to the arm.
Do you support bulk or private label?
Yes—custom packaging & labeling available with MOQ.
